12054

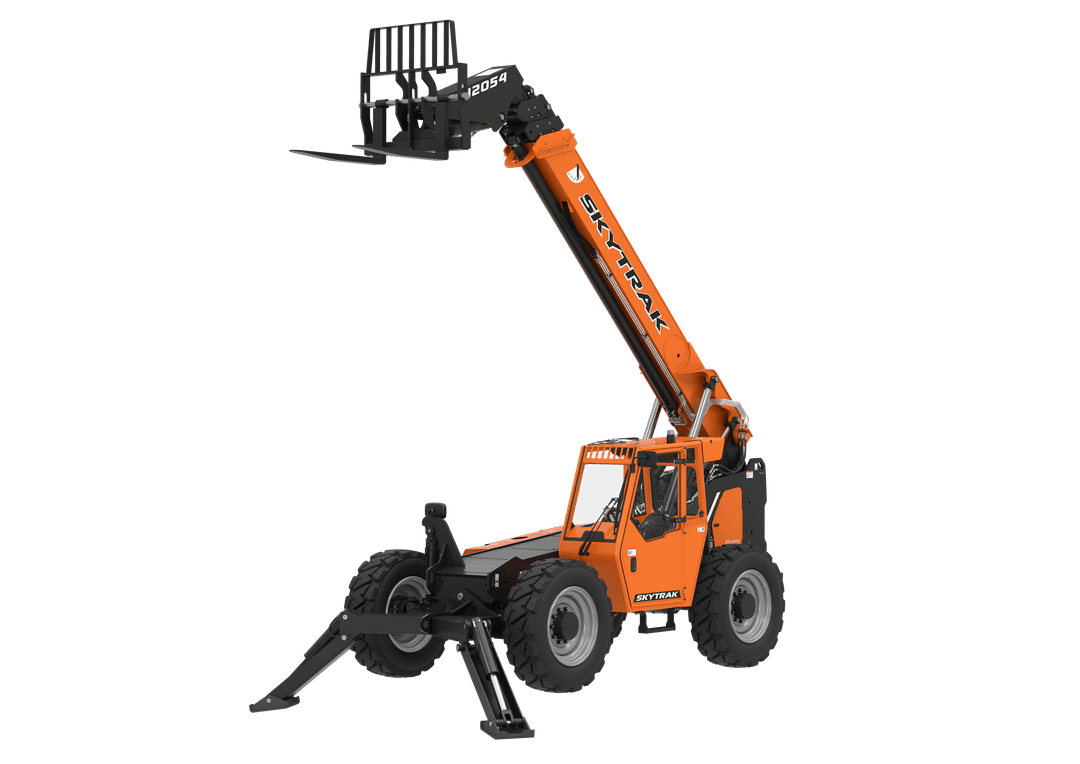

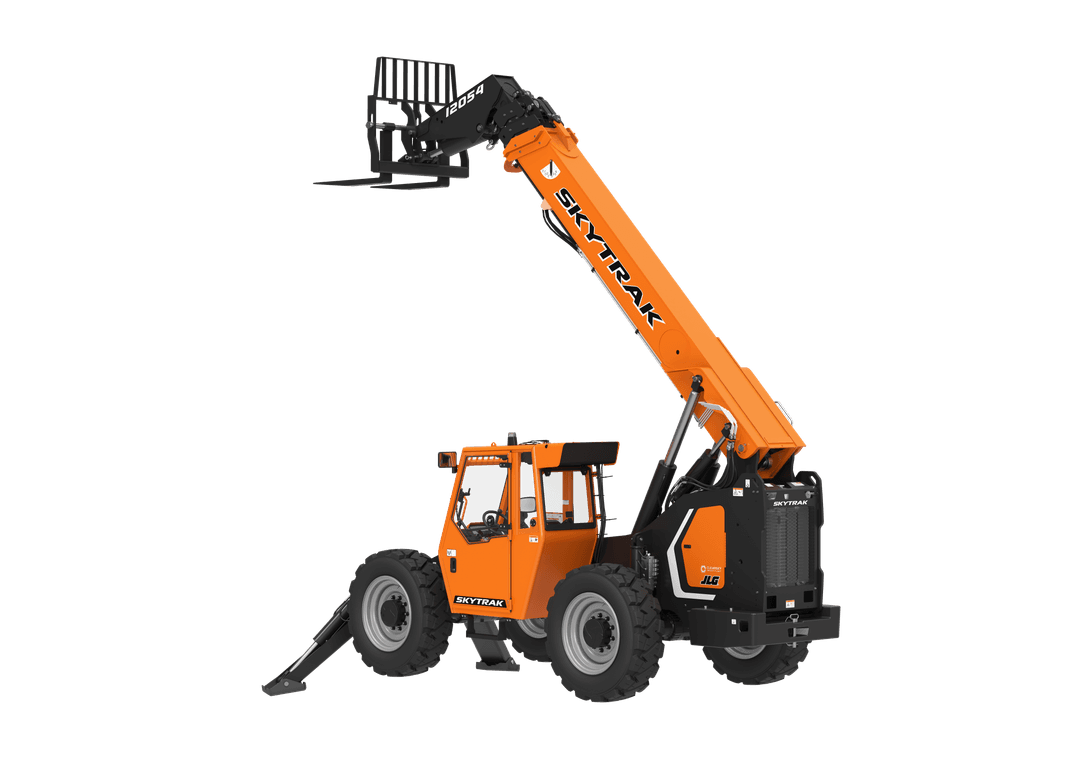

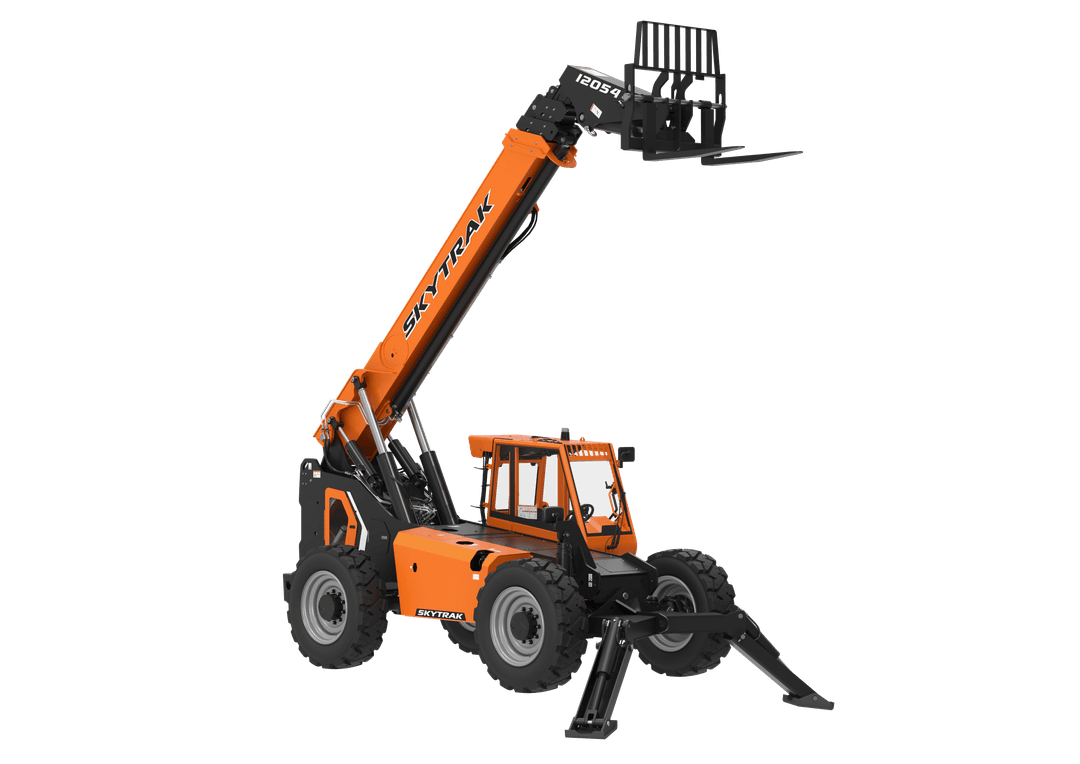

SkyTrak® Telehandler

Key Specs

  • Maximum Lift Capacity: 12000 lb / 5443.11 kg
  • Outriggers Up Max Lift Height: 42 ft / 12.8 m
  • Maximum Lift Height: 53 ft 2 in. / 16.21 m
  • Maximum Reach: 38 ft 10 in. / 11.84 m
SEE ALL SPECS

Key Features

  • Reduce Operator Fatigue: Single joystick and integrated arm rest
  • Enhance Operator Comfort: Optional air conditioning for cab
  • Increase Confidence During Load Placement: Stabil-Trak rear axle stabilization system
  • Lower Maintenance Costs: Optional 74 hp engine doesn’t require diesel exhaust fluid (DEF) and meets Tier 4 Final regulations

BIM Files

File Format*   .rfa   .ifc

Performance
Drawbar Pull30000 lb / 13607.77 kg
Frame Leveling10 Degrees
Outriggers Up Lift Capacity Full Height7500 lb / 3401.94 kg
Outriggers Up Lift Capacity Full Reach2000 lb / 907.18 kg
Load Center2 ft / 0.61 m
Maximum Lift Capacity12000 lb / 5443.11 kg
Outriggers Up Max Lift Height42 ft / 12.8 m
Outriggers Up Max Forward Reach26 ft 6 in. / 8.08 m
Lift Capacity at Full Height5000 lb / 2267.96 kg
Lift Capacity at Max Reach3500 lb / 1587.57 kg
Maximum Reach38 ft 10 in. / 11.84 m
Maximum Lift Height53 ft 2 in. / 16.21 m
Outriggers or StabilizersYes
Outside Turning Radius13 ft 10 in. / 4.22 m
Speed - Maximum Travel18.2 mph / 29.29 km/h

Dimensional Data
Ground Clearance1 ft 6 in. / 0.46 m
Machine Height8 ft 4 in. / 2.54 m
Machine Length21 ft / 6.4 m
Machine Width8 ft 6 in. / 2.59 m
Tire Size400/75-28
Wheelbase10 ft / 3.04 m

Power Source
Capacity - Fuel Tank35 gal. / 132.49 L
Engine Horsepower110 hp / 82.06 kW
Engine Horsepower Optional74 hp / 55.20 kW
Engine ManufacturerCummins
Engine ModelQSF3.8L Tier 4 F
Maximum Engine RPM2500 rpm

General
Axle-FrontHigh Bias, Limited Slip
Axle-RearOscillating
Function Pump TypeLoad Sensing Piston
Operating Vehicle Weight30357 lb / 13769.70 kg
Service Brake TypeWet Multi-Disc
Transmission - Nr Forward Gears Standard4
Transmission - Nr Reverse Gears3
Transmission TypePowershift

  • Reduce Operator Fatigue: Single joystick and integrated arm rest
  • Enhance Operator Comfort: Optional air conditioning for cab
  • Increase Confidence During Load Placement: Stabil-Trak rear axle stabilization system
  • Lower Maintenance Costs: Optional 74 hp engine doesn’t require diesel exhaust fluid (DEF) and meets Tier 4 Final regulations


Skytrak 12054 Load Chart 1


SkyTrak 12054 Load Chart 2

  • JLG Standard Carriage
    Standard Carriage
  • JLG Swing Carriage
    Swing Carriage
  • JLG Side Tilt Carriage
    Side-Tilt Carriage
  • Side Shift Carriage
    Side-Shift Carriage
  • Dual Fork Positioning Carriage
    Dual Fork Positioning Carriage
  • JLG Tower
    Tower
  • JLG Pallet Forks
    Pallet Forks
  • JLG Lumber Forks
    Lumber Forks
  • JLG Cubing Forks
    Cubing Forks
  • JLG Fork Extensions
    Fork Extensions
  • JLG Material Bucket
    Material Buckets
  • JLG Grapple Bucket
    Grapple Buckets
  • JLG Work Platform
    Fork-Mounted Work Platform
  • JLG Lifting Hook
    Lifting Hook
  • Fork Mounted bucket
    Fork-Mounted Bucket
  • Material-Handlng-Arm
    Material Handling Arm
  • Trash Hopper
    Trash Hopper
  • Fork-Mounted Extendable Truss
  • Pipe Grapple
    Pipe Grapple
