10042

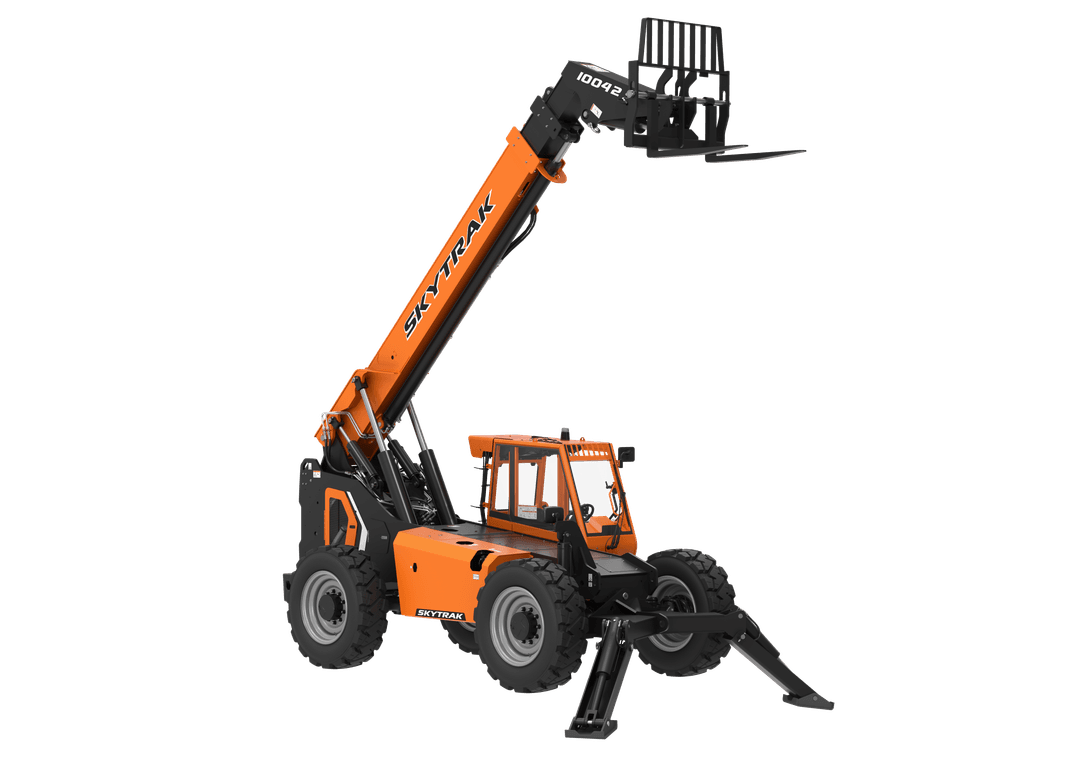

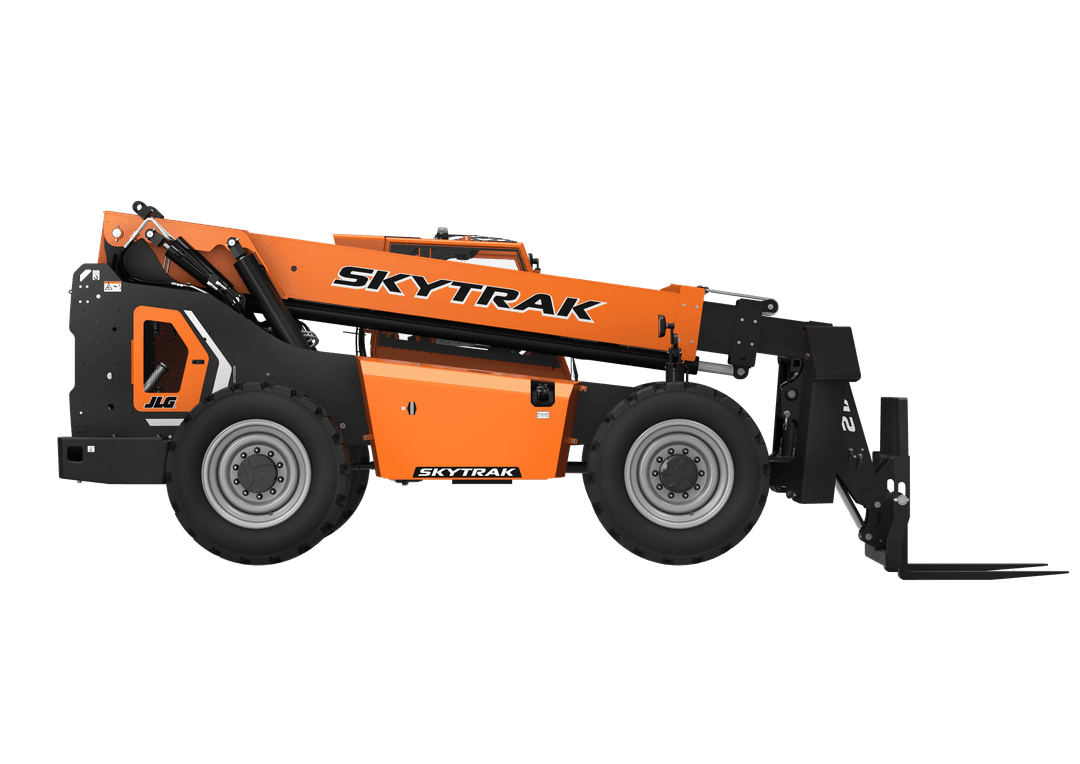

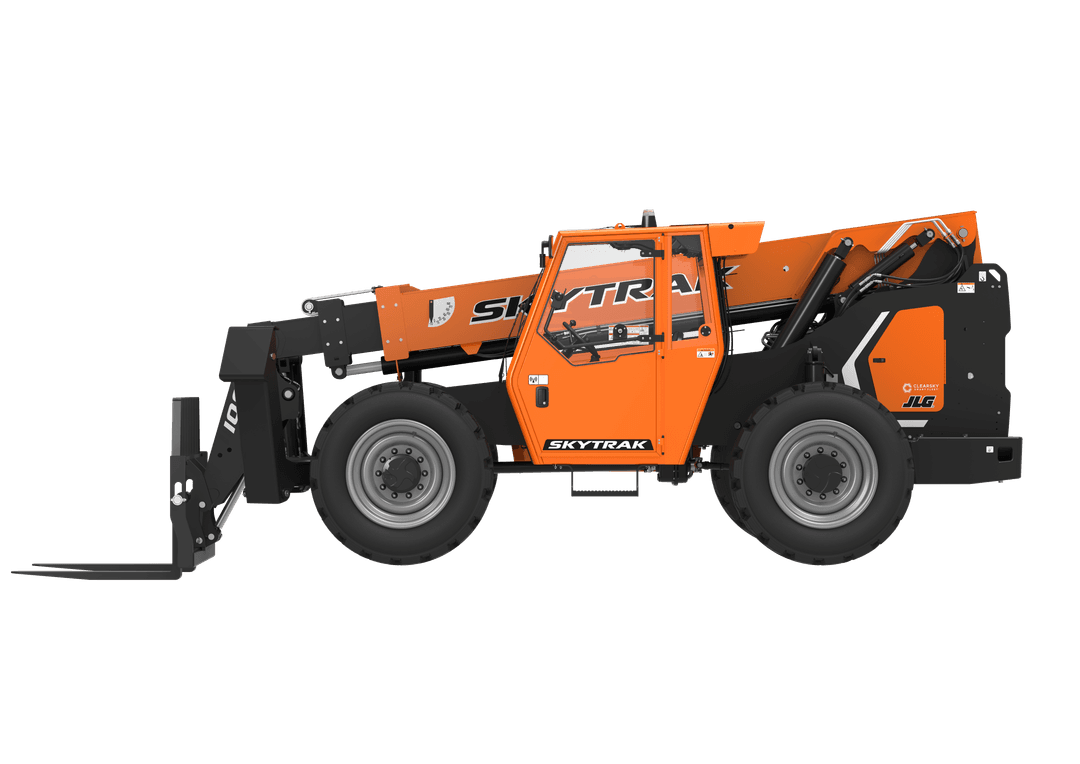

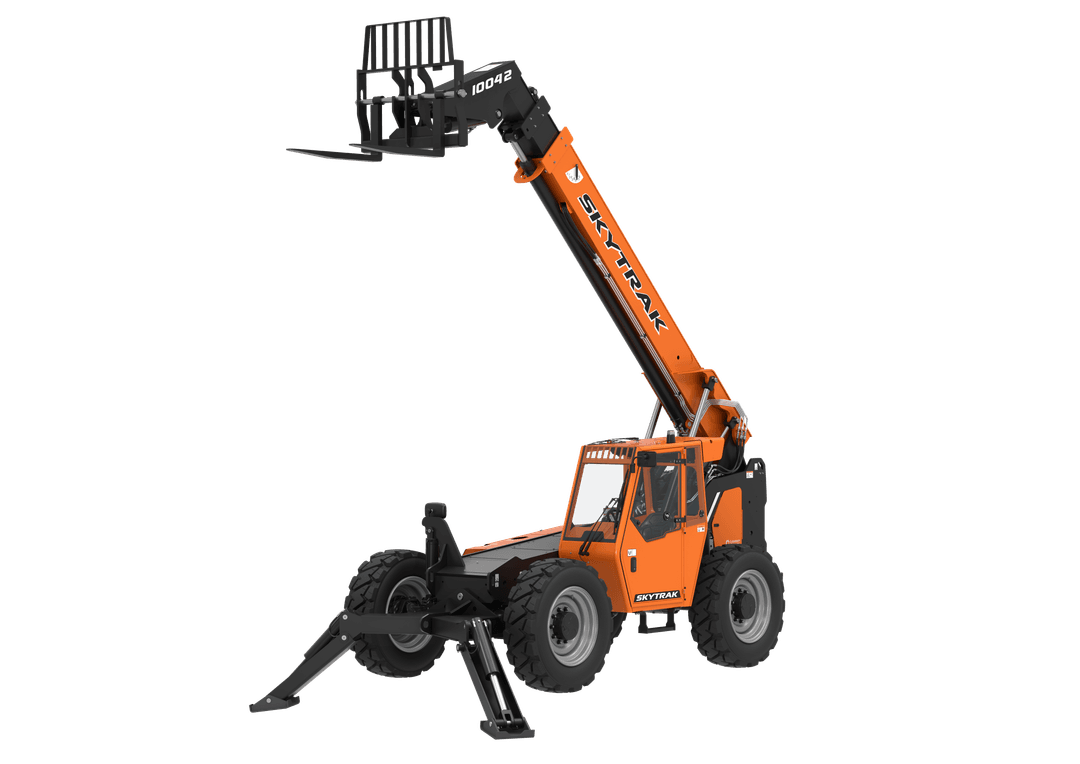

SkyTrak® Telehandler

Key Specs

  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Outriggers Up Max Lift Height: 42 ft 1 in. / 12.83 m
  • Maximum Lift Height: 42 ft 1 in. / 12.83 m
  • Maximum Reach: 26 ft 7 in. / 8.1 m
SEE ALL SPECS

Key Features

  • New, intuitive single joystick controls all boom functions
  • Maximize productivity with improved boom speeds
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
SEE ALL FEATURES

BIM Files

File Format*   .rfa   .ifc

Performance
Drawbar Pull24500 lb / 11113.01 kg
Frame Leveling10 Degrees
Outriggers Up Lift Capacity Full Height6000 lb / 2721.55 kg
Outriggers Up Lift Capacity Full Reach2000 lb / 907.18 kg
Load Center2 ft / 0.61 m
Maximum Lift Capacity10000 lb / 4535.92 kg
Outriggers Up Max Lift Height42 ft 1 in. / 12.83 m
Outriggers Up Max Forward Reach26 ft 7 in. / 8.1 m
Lift Capacity at Full Height6000 lb / 2721.55 kg
Lift Capacity at Max Reach6000 lb / 2721.55 kg
Maximum Reach26 ft 7 in. / 8.1 m
Maximum Lift Height42 ft 1 in. / 12.83 m
Outriggers or StabilizersYes
Outside Turning Radius14 ft 2 in. / 4.32 m
Speed - Maximum Lift16.4 sec.
Speed - Maximum Lower15 sec.
Speed - Maximum Telescope In15.1 sec.
Speed - Maximum Telescope Out17.2 sec.
Speed - Maximum Travel20 mph / 32.19 km/h

Dimensional Data
Ground Clearance1 ft 6 in. / 0.46 m
Machine Height8 ft 4 in. / 2.54 m
Machine Length20 ft 8 in. / 6.3 m
Machine Width8 ft 6 in. / 2.59 m
Tire Size400/75-28
Wheelbase10 ft / 3.04 m

Power Source
Capacity - Fuel Tank35 gal. / 132.49 L
Engine Horsepower110 hp / 82.06 kW
Engine ManufacturerCummins
Engine ModelQSB3.8L Tier 4 Final
Maximum Engine RPM1500 rpm

General
Axle-FrontHigh Bias, Limited Slip
Axle-RearOscillating
Function Pump TypeVar Load Sensing Piston
Operating Vehicle Weight27300 lb / 12383.07 kg
Service Brake TypeWet Multi-Disc
Transmission - Nr Forward Gears Standard4
Transmission - Nr Reverse Gears3
Transmission TypePowershift

  • New, intuitive single joystick controls all boom functions
  • Maximize productivity with improved boom speeds
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • Greater job site versatility—rear counterweight includes an integrated tow hitch
  • Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Take a virtual tour of the SkyTrak telehandlers


10042 SkyTrak Load Chart

10042 SkyTrak OR up Load Chart


  • JLG Standard Carriage
    Standard Carriage
  • JLG Side Tilt Carriage
    Side-Tilt Carriage
  • JLG Swing Carriage
    Swing Carriage
  • Side Shift Carriage
    Side-Shift Carriage
  • Dual Fork Positioning Carriage
    Dual Fork Positioning Carriage
  • JLG Tower
    Tower
  • JLG Pallet Forks
    Pallet Forks
  • JLG Lumber Forks
    Lumber Forks
  • JLG Cubing Forks
    Cubing Forks
  • JLG Fork Extensions
    Fork Extensions
  • JLG Material Bucket
    Material Buckets
  • JLG Grapple Bucket
    Grapple Buckets
  • JLG Work Platform
    Fork-Mounted Work Platform
  • JLG Lifting Hook
    Lifting Hook
  • Fork Mounted bucket
    Fork-Mounted Bucket
  • Material-Handlng-Arm
    Material Handling Arm
  • Trash Hopper
    Trash Hopper
  • Fork-Mounted Extendable Truss
