1055

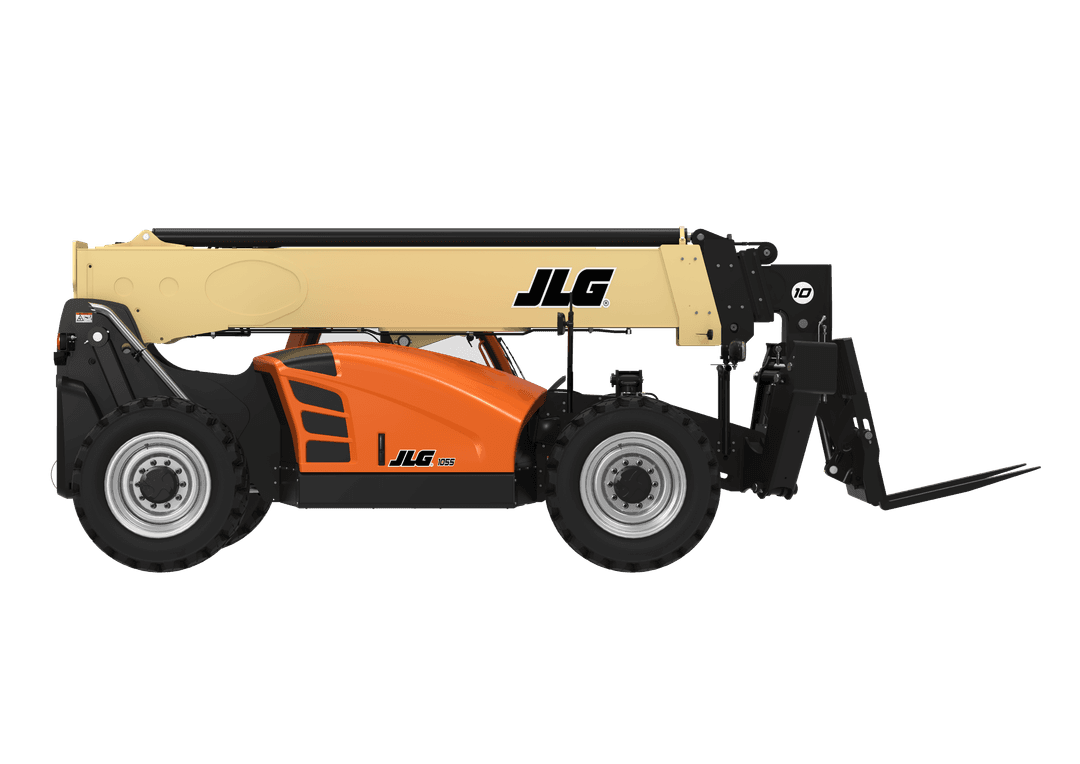

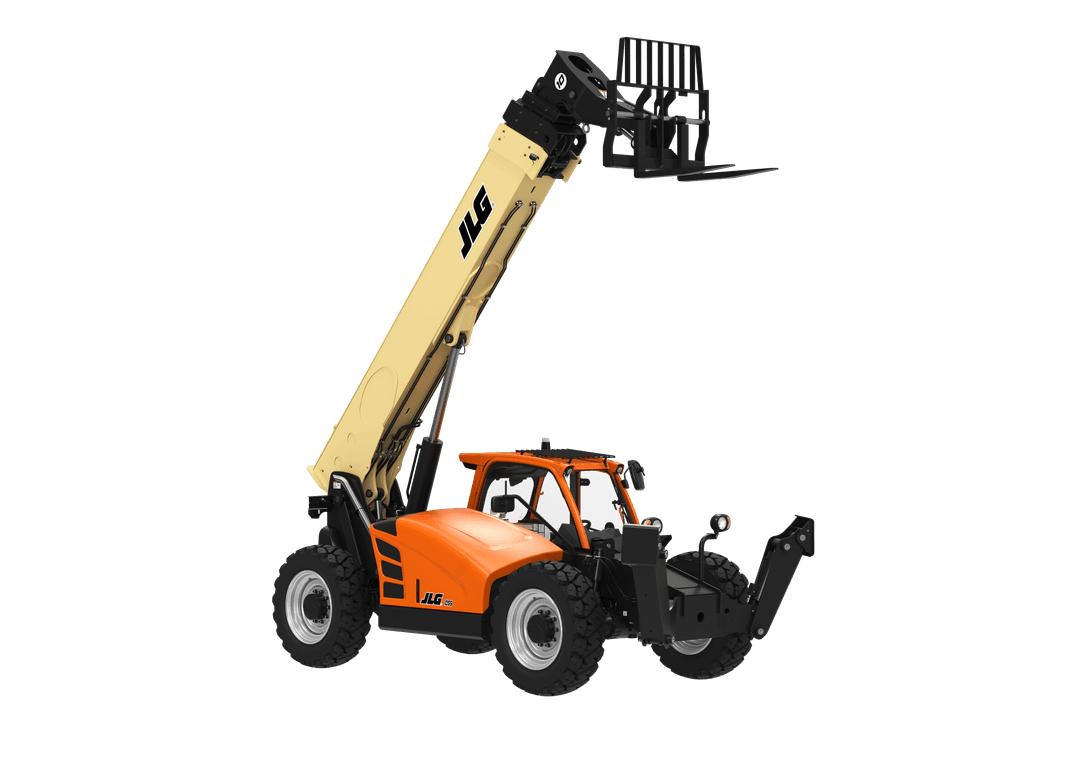

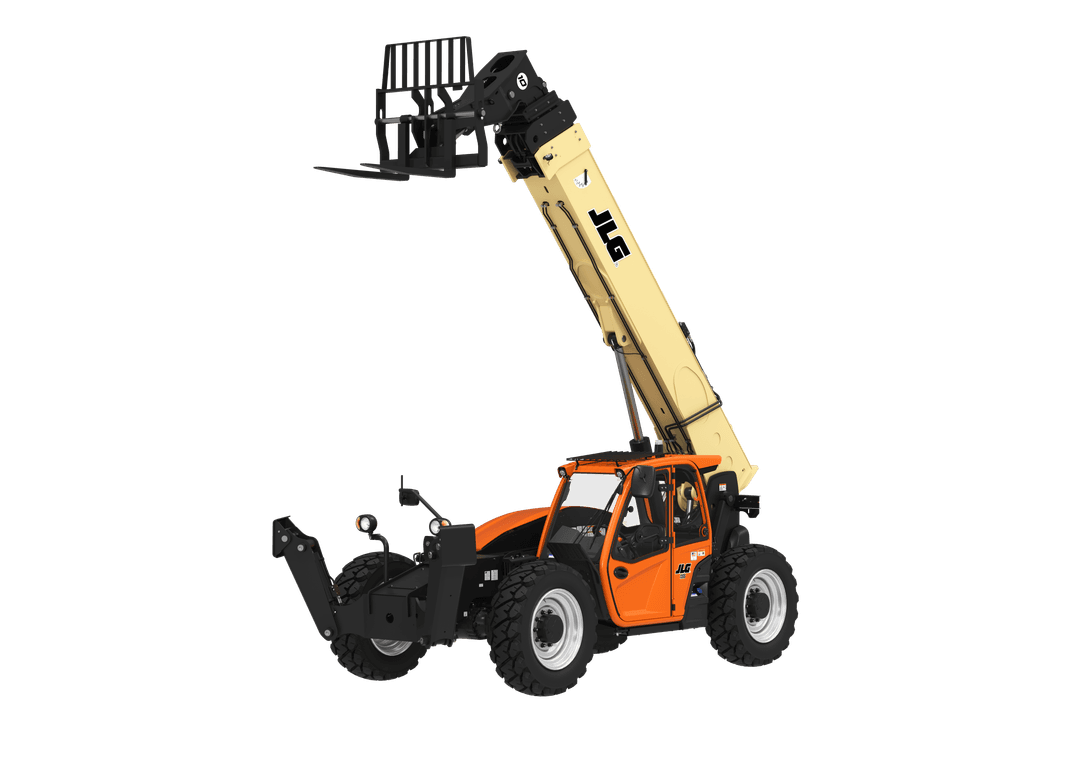

JLG® Telehandler

Key Specs

  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Outriggers Up Max Lift Height: 55 ft / 16.76 m
  • Maximum Lift Height: 55 ft / 16.76 m
  • Maximum Reach: 42 ft / 12.8 m
SEE ALL SPECS

Key Features

  • Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
  • Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
  • Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
  • Increased versatility—wide range of attachment options

BIM Files

File Format*   .rfa   .ifc

Performance
Drawbar Pull25400 lb / 11521.25 kg
Frame Leveling10 Degrees
Load Center2 ft / 0.61 m
Maximum Lift Capacity10000 lb / 4535.92 kg
Outriggers Up Max Lift Height55 ft / 16.76 m
Outriggers Up Max Forward Reach42 ft / 12.8 m
Lift Capacity at Full Height5000 lb / 2267.96 kg
Lift Capacity at Max Reach3000 lb / 1360.78 kg
Maximum Reach42 ft / 12.8 m
Maximum Lift Height55 ft / 16.76 m
Outriggers or StabilizersYes
Outside Turning Radius14 ft / 4.27 m
Speed - Maximum Lift14 sec.
Speed - Maximum Lower11 sec.
Speed - Maximum Telescope In15 sec.
Speed - Maximum Telescope Out16 sec.
Speed - Maximum Travel20 mph / 32.19 km/h

Dimensional Data
Ground Clearance1 ft 6 in. / 0.46 m
Machine Height8 ft 4 in. / 2.54 m
Machine Length20 ft 1 in. / 6.12 m
Machine Width8 ft 5 in. / 2.56 m
Tire Size400/75-28
Wheelbase11 ft 6 in. / 3.49 m

Power Source
Capacity - Fuel Tank38.3 gal. / 144.98 L
Engine Horsepower130 hp / 96.98 kW
Engine ManufacturerCummins
Engine ModelQSF3.8L Tier 4 F
Maximum Engine RPM2500 rpm

General
Axle-FrontHigh Bias, Limited Slip
Axle-RearPlanetary
Function Pump TypeLoad Sensing Piston
Operating Vehicle Weight31559 lb / 14314.92 kg
Service Brake TypeWet Multi-Disc
Transmission - Nr Forward Gears Standard4
Transmission - Nr Reverse Gears3
Transmission TypePowershift

  • Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
  • Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
  • Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
  • Increased versatility—wide range of attachment options
1055 Load Chart Up


1055 Load Chart Down

  • JLG Standard Carriage
    Standard Carriage
  • JLG Side Tilt Carriage
    Side-Tilt Carriage
  • JLG Swing Carriage
    Swing Carriage
  • Dual Fork Positioning Carriage
    Dual Fork Positioning Carriage
  • Side Shift Carriage
    Side-Shift Carriage
  • JLG Tower
    Tower
  • JLG Pallet Forks
    Pallet Forks
  • JLG Lumber Forks
    Lumber Forks
  • JLG Cubing Forks
    Cubing Forks
  • JLG Fork Extensions
    Fork Extensions
  • JLG Material Bucket
    Material Buckets
  • JLG Grapple Bucket
    Grapple Buckets
  • JLG Work Platform
    Fork-Mounted Work Platform
  • Fork Mounted bucket
    Fork-Mounted Bucket
  • Coupler-Mounted Lifting Hook
    Coupler-Mounted Lifting Hook
  • Material-Handlng-Arm
    Material Handling Arm
  • Trash Hopper
    Trash Hopper
  • Sweeper
    Sweeper
  • Fork-Mounted Extendable Truss
