6042

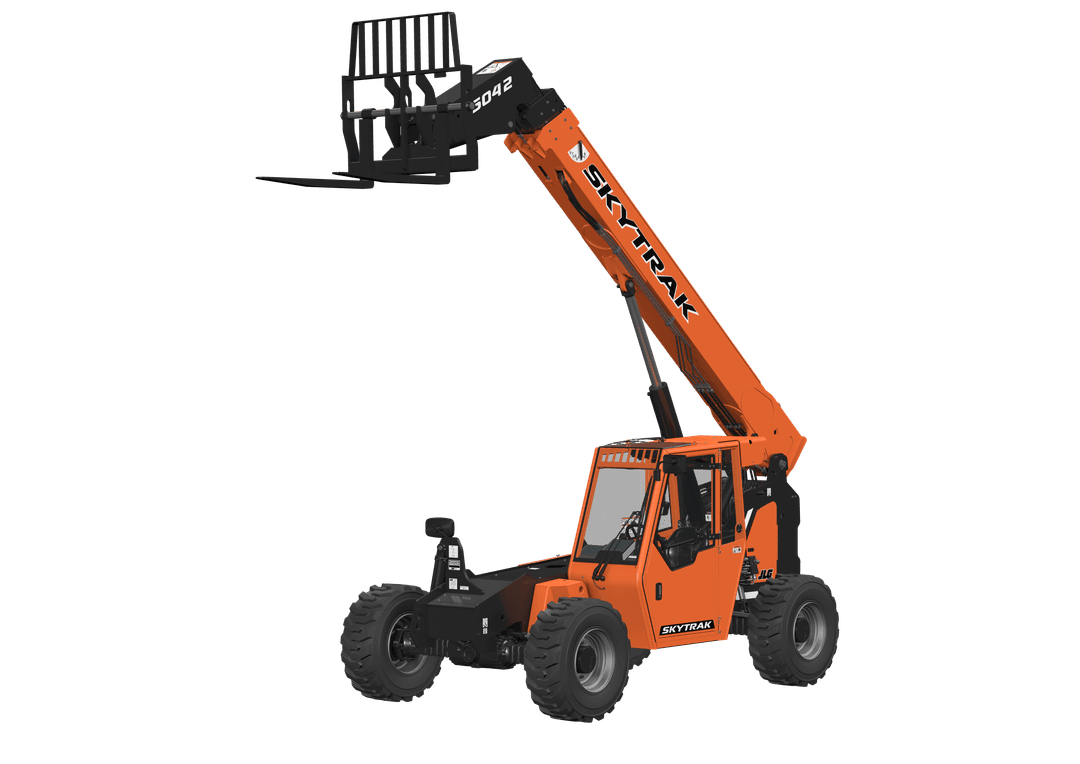

SkyTrak® Telehandler
- Maximum Lift Capacity: 6000 lb / 2721.55 kg
- Maximum Lift Height: 42 ft 4 in. / 12.9 m
- Maximum Reach: 29 ft 6 in. / 8.99 m
SEE ALL SPECS
| Performance |
| Drawbar Pull | 16715 lb / 7581.80 kg |
| Frame Leveling | 10 Degrees |
| Lift Capacity at Full Height | 6000 lb / 2721.55 kg |
| Lift Capacity at Max Reach | 1200 lb / 544.31 kg |
| Load Center | 2 ft / 0.61 m |
| Maximum Lift Capacity | 6000 lb / 2721.55 kg |
| Maximum Lift Height | 42 ft 4 in. / 12.9 m |
| Maximum Reach | 29 ft 6 in. / 8.99 m |
| Outriggers or Stabilizers | No |
| Outside Turning Radius | 12 ft 7 in. / 3.84 m |
| Speed - Maximum Lift | 13.3 sec. |
| Speed - Maximum Lower | 11.3 sec. |
| Speed - Maximum Telescope In | 12 sec. |
| Speed - Maximum Telescope Out | 13.8 sec. |
| Speed - Maximum Travel | 15 mph / 24.14 km/h |
| Dimensional Data |
| Ground Clearance | 1 ft 3 in. / 0.38 m |
| Machine Height | 8 ft 4 in. / 2.53 m |
| Machine Length | 19 ft 8 in. / 5.99 m |
| Machine Width | 7 ft 11 in. / 2.41 m |
| Tire Size | 15-19.5 |
| Wheelbase | 10 ft 2 in. / 3.1 m |
| Power Source |
| Capacity - Fuel Tank | 28 gal. / 105.99 L |
| Engine Horsepower | 74 hp / 55.20 kW |
| Engine Manufacturer | Deutz |
| Engine Model | TCD2.9 L4 |
| Maximum Engine RPM | 1400 rpm |
| General |
| Axle-Front | High Bias, Limited Slip |
| Axle-Rear | Oscillating |
| Operating Vehicle Weight | 19100 lb / 8663.61 kg |
| Service Brake Type | Wet Multi-Disc |
| Transmission - Nr Forward Gears Standard | 1 |
| Transmission - Nr Reverse Gears | 1 |
| Transmission Type | Hydrostatic |
Close
- Hydrostatic transmission for ease of operation.
- Advanced control system that allows for more options and provides improved diagnostics.
- Lightweight design that allows for efficient transport.
- Electric over hydraulic joystick for greater multifunction capability.
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
